FR - Multistrand Cables

Flame Retardant wires have high oxygen and temperature index-that prevents the spread of fire even at high temperature. 0.75 Sq mm to 95.0 Sq mm FR Multistrand Cables - House Gard - FR. House Gard - FR wires have high oxygen and temperature index - that prevents the spreading of fire even at high temperature. The House Guard - FR wire is manufactured using 99.97% pure - electrolytic - grade - bright annealed bare copper with more than 100% conductivity. This wire is insulated with the flame retardant - FR PVC compound with a high oxygen and temperature


Enquiry Now
Nominal Cross sectional area of Conductor Number/Nom. of Wire Nominal Thickness of Insulation Overall Diameter (Approx) Current Carrying capacity # 2 cables single phase Max. Resistance of Con. per km @20 deg C
Sq. mm mm mm mm Amps Amps Ohms
0.75 24/0.2** 0.7 2.6 8 9 21.10
1.0 14/0.3* 0.7 2.8 11 12 18.10
1.5 22/0.3* 0.7 3.2 13 16 12.10
2.5 36/0.3* 0.8 3.8 18 22 7.41
4.0 56/0.3* 0.8 4.5 24 29 4.95
6.0 84/0.3** 0.9 5.3 31 37 3.30
10.0 140/0.3** 1.0 6.8 42 51 1.91
16.0 126/0.4** 1.0 7.6 57 68 1.21

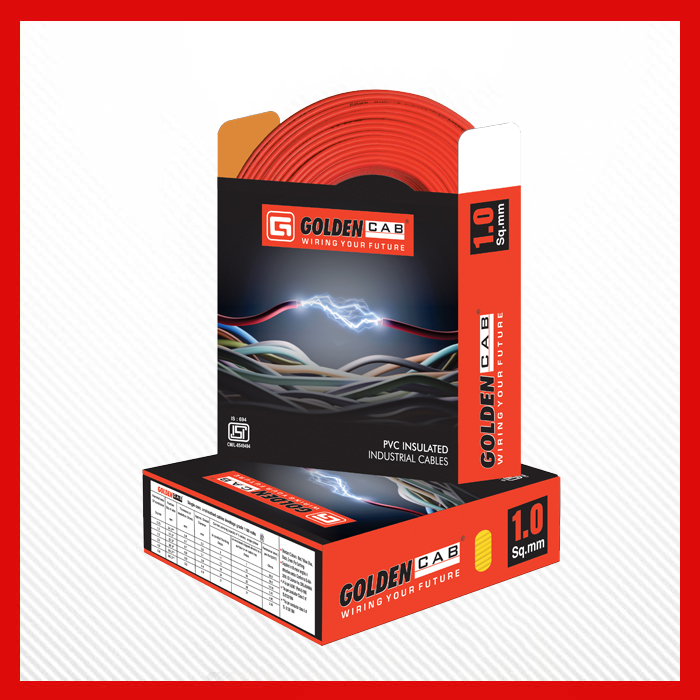

Standard packing - 90 meters in attractive cartons.

Colours available - Red, Yellow, Black, White, Green (for earthing) & Grey. Confirm To

IS-694-1990. ISI licence No. CM-L-8549494.

*As per conductor class 2 of IS :8130/1984.

**As per conductor class 5 of IS : 8130 / 1984 # as per is 3961 (PART-V) - 1968
